Rush Hour ?-??-83


This is the third and most stable of the three known prototypes for Rush Hour.  It is believed that this is the last version that the programmer worked on before his accident.  This is the version that was used as the basis for the CGE reproduction release.

What makes these prototypes interesting is that there is some odd debugging code active that at first glance looks like random garbage on the screen.  The reason for this is that the programmer was trying to figure out how long specific blocks of code were taking so he could adjust them because if the code takes too long or too little time it can cause the display kernel to lose sync which makes the picture roll or flicker.

The way this debugging code works is that the code displays whatever value is in register PF2 (playfield register 2) and outputs it on the screen as graphics.  Normally this value is just a loop timer value that counts down to zero and will display whatever number it is currently on as a graphic pattern on the screen based on which bits are set for the given number in binary (eg. a 4 will display a x-- pattern, 3 will display an -xx, 2 will display -x- , and 1 will display a --x pattern).  These patterns are the 'graphical garbage that is displayed over the screen.  This timer normally runs every 64 cycles, however if the timer underflows then the loop countdown happens every cycle which creates a different looking pattern.  This is when the game begins to lose sync and roll.

The programmer was attempting to fix these issues by setting initial timer values which controlled how long a block of code is allowed to run.  By tweaking these values the programmer was able to get the display to be more and more stable.  In this prototype the display is very unstable which makes it difficult to play.  It's also worth noting that Rush Hour uses a great many timer values for its code whereas most games only use two.


The initial timer values are different
There is debugging code active

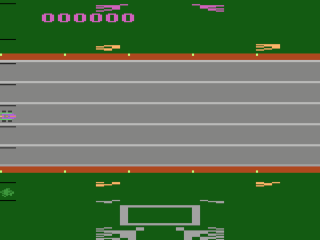

Those graphics below the radar mean there is an underflow in the loop

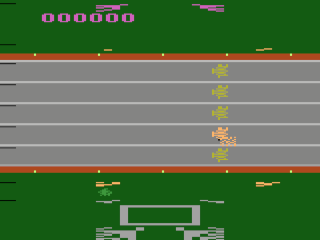

The graphics are gone so the loop is ok for now

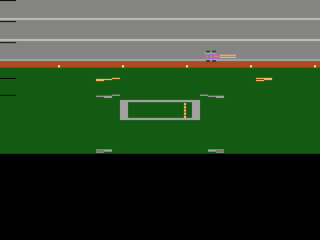

Here the game has started to lose sync

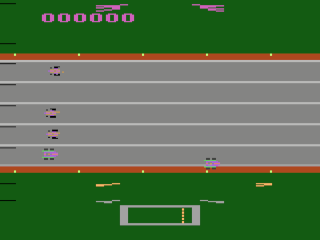

Note the other graphic garbage on the screen from the debug loops
